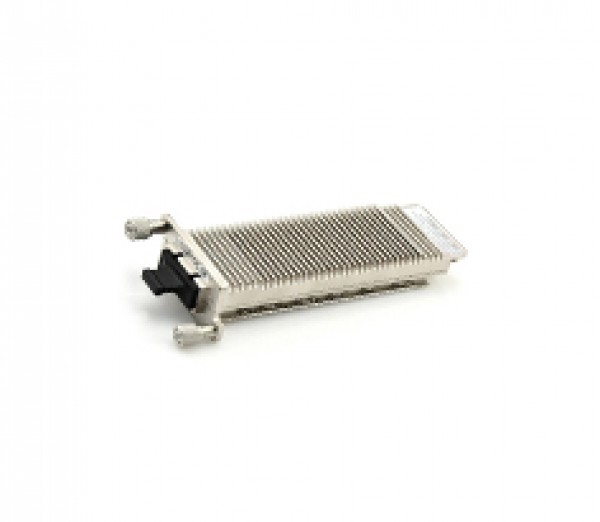

10G XENPAK ER 10KM SFP
10G XENPAK ER 10KM SFP

10G XENPAK ER 10KM SFP

Model NO.
10Gb/s 1310nm XENPAK ER Transponder
Quantity:
 - Specification -
Table 1-Optical and Electrical Characteristics
ParameterSymbolMinTypicalMaxUnit
Data Rate(TXLINE0-3)RX-xaui
 		3125
 		Mbps
Supply VoltageVccRX3.133.33.47V
Differential Output AmplitudeVout P-P800-1600mV
Rise/Fall TimeTr/Tf50-90ps
Differential Impedance of ZoutZout-100-ohm

Signal Specifications – Electrical
ParameterSymbolMinTypMaxUnits
1.2 V CMOS
Input High VoltageVIL(MAX)--0.36V
Input Low VoltageVIH(MIN)0.84-1.25V
Capacitance
 		--320pF
Pull Up ResistanceRpull10k-22kohm
MDIO I/O
Output Low VoltageVOL-0.3-0.2V
Output Low CurrentIOL--4mA
Input High VoltageVIH0.84-1.5V
Input Low VoltageVIL-0.3-0.36V
Pull-up Supply VoltageVPULL1.141.21.26

Input CapacitanceCIN--10Pf
Load CapacitanceCLOD--470Pf
External Pull-up ResistanceEPULL200--Ohm

Ordering information
TypeRateWavelengthDistance        Transmitter       power         Receiver            sensitivityDiodeInterface
   10G      XENPAK10G850nm300m-5～-1≤-12dBmVCSELSC
1310nm220m-5～-1≤-12dBmFPSC
10km-5～-1≤-15dBmDFBSC
1550nm40km-1～3≤-16dBmEMLSC
80km0～5≤-24dBmEMLSC
