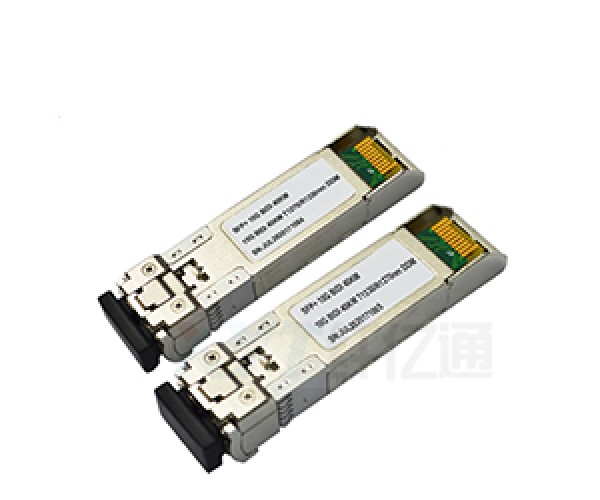

10G SFP+ BIDI 60KM Optic Module
10G SFP+ BIDI 60KM Optic Module

10G SFP+ BIDI 60KM Optic Module

Model NO.
XYT-SFP+BD-T1330/R1270-60
Quantity:

- Specification -

Table 1-Optical and Electrical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

1260

1310

1360

nm

Spectral Width(RMS)

λ

4

nm

Average Output Power

Pout

-9

-3

dBm

1

Extinction Ratio

ER

9

dB

Optical Rise/Fall Time(20%~80%)

tr/tf

0.26

ns

Data Input Swing Differential

VIN

400

1800

mV

2

Input Differential Impedance

ZIN

90

100

110

Ω

TX Disable

Disable

2

Vcc

V

Enable

0

0.8

V

TX Fault

Fault

2

Vcc

V

Normal

0

0.8

V

Receiver

Centre Wavelength

λc

1260

1580

nm

Receiver Sensitivity

-23

dBm

3

Receiver Overload

-3

dBm

3

LOS De-Assert

LOSD

-24

dBm

LOS Assert

LOSA

-35

dBm

LOS Hysteresis

1

4

dB

Data Output Swing Differential

Vout

400

1800

mV

4

LOS

High

2

Vcc

V

Low

0.8

V

NOTE:

1.The optical power is launched into SMF.

2.PECL input,internally AC-coupled and terminated.

3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.

4.Internally AC-coupled.

Ordering information

ModleRateWavelengthTransmission DistanceTx PowerRx PowerConnector
XYT-SFP＋BX-U/D10Gb/s1270/133010km-1~-5≤-15LC
XYT-SFP＋BX-U/D10Gb/s1270/133040km0~5≤-16LC
XYT-SFP＋BX-U/D10Gb/s1270/133060km0~5≤-20LC

Features
1．Up to 10.7Gbps Data Links
2．Single Mode LC Receptacle Bi-directional Transceiver
3．Up to 60km transmission on SMF
4．Power dissipation<1.5W
5．1270nm DFB laser and PIN receiver
6．2-wire interface with integrated Digital Diagnostic monitoring
7．EEPROM with Serial ID Functionality
8．Compliant with SFP+MSA with duplex LC connector
9．Single+3.3V Power Supply
10．Case operating temperature:-5?C~+70?C

Applications
1．Gigabit Ethernet
2．Fiber Channel
3．WDM Application
4．Switch to Switch interface
5．Switch backplane applications
6．ATM
7．SONT/SDH/PDH
8．FDDI
9．Other optical transmission system
