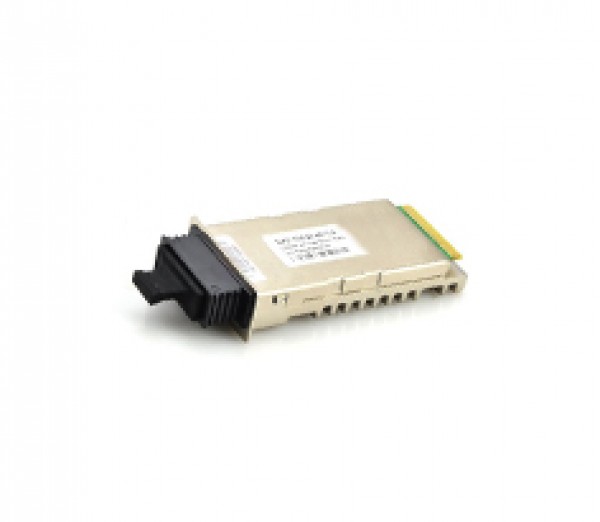

10G DWDM X2 ER 40km Module

Model NO.: 10Gb/s DWDM X2 ER Transponder

Quantity:

Product Description
Application Description

- Specification -

Absolute Maximum Ratings

Table 1-Optical and Electrical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
XAUI Date Rate	DR		3.145		Gb/s
XAUI Baud Rate Tolerance		-100		+100	ppm	Relative Tolerance
Differential Input Voltage Swing		220		1600	mv	8B/10B Coded Input Signal
Differential Output Voltage Swing		800		1600	mVp-p	RLOAD=100?± 5%
Differential Input Impedance		80	100	140	?
Total Output Jitter	TJXAUI			0.35	UI	no pre-equalization
Total Deterministic Output Jitter	DJXAUI			0.17	UI	no pre-equalization

C-band λc Wavelength Guide

ITU Channel	Frequency(THz)	Wavelength	ITU Channel	Frequency(THz)	Wavelength
Product Code	Frequency(THz)	Wavelength	Product Code	Frequency(THz)	Wavelength
17	191.7	1563.86	40	194	1545.32
18	191.8	1563.05	41	194.1	1544.53
19	191.9	1562.23	42	194.2	1543.73
20	192	1561.42	43	194.3	1542.94
21	192.1	1560.61	44	194.4	1542.14
22	192.2	1559.79	45	194.5	1541.35
23	192.3	1558.98	46	194.6	1540.56
24	192.4	1558.17	47	194.7	1539.77
25	192.5	1557.36	48	194.8	1538.98
26	192.6	1556.55	49	194.9	1538.19
27	192.7	1555.75	50	195	1537.4
28	192.8	1554.94	51	195.1	1536.61
29	192.9	1554.13	52	195.2	1535.82
30	193	1553.33	53	195.3	1535.04
31	193.1	1552.52	54	195.4	1534.25
32	193.2	1551.72	55	195.5	1533.47
33	193.3	1550.92	56	195.6	1532.68
34	193.4	1550.14	57	195.7	1531.9
35	193.5	1549.32	58	195.8	1531.14
36	193.6	1548.51	59	195.9	1530.33
37	193.7	1547.72	60	196	1529.55
38	193.8	1546.92	61	196.1	1528.77
39	193.9	1546.14	62	196.2	1528.33

Features
1.X2 MSA Compliant
2.70-PIN connector
3.SC duplex receptacle package
4.XAUI 4x3.125Gb/s and TX/RX 10Gb/s data rate
5.Wavelength selectable to C-band ITU-T grid wavelengths
6.Cooled EA-DFB/PIN-PD
7.Power supply:+5.0 V,+3.3 V,APS:+1.2 V
8.Power Dissipation 4W Maximum
9.0℃ to 70℃ Operating Case Temperature
10.Digital Diagnostic Monitoring
11.Management and control with MDIO 2-wire bus
12.XAUI electrical interface 4 x 3.125Gb/s Ethernet
13.≤40km ER（Extended Range）10GBE
14.RoHS compliant and lead free

Applications
10 Gb/s Ethernet transmission systems
