10G 40km SFP+ CWDM module
10G 40km SFP+ CWDM module

10G 40km SFP+ CWDM module

Model NO.

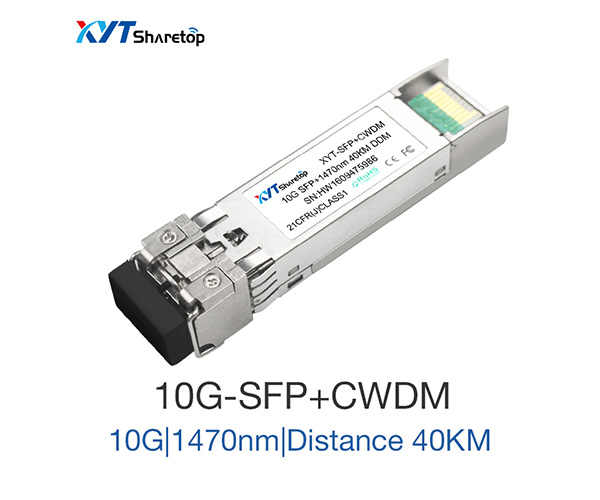

10Gb/s CWDM Single-mode 40 KM SFP+ Transceiver
Quantity:

 - Specification -

Table 1-Optical and Electrical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

1260

1310

1360

nm

Spectral Width(RMS)

?λ

4

nm

Average Output Power

Pout

-9

-3

dBm

1

Extinction Ratio

ER

9

dB

Optical Rise/Fall Time(20%~80%)

tr/tf

0.26

ns

Data Input Swing Differential

VIN

400

1800

mV

2

Input Differential Impedance

ZIN

90

100

110

Ω

TX Disable

Disable

2

Vcc

V

Enable

0

0.8

V

TX Fault

Fault

2

Vcc

V

Normal

0

0.8

V

Receiver

Centre Wavelength

λc

1260

1580

nm

Receiver Sensitivity

-23

dBm

3

Receiver Overload

-3

dBm

3

LOS De-Assert

LOSD

-24

dBm

LOS Assert

LOSA

-35

dBm

LOS Hysteresis

1

4

dB

Data Output Swing Differential

Vout

400

1800

mV

4

LOS

High

2

Vcc

V

Low

0.8

V

NOTE:

1.The optical power is launched into SMF.

2.PECL input,internally AC-coupled and terminated.

3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.

4.Internally AC-coupled.

Ordering information

Type

Rate

Wavelength

Transmission Distance

  Transmitter     Power

Receiver sensitivity

Interface

     Operating           temperature

CWDM SFP+

10G

1270-1450nm

10KM

-1~-5

≤-14.4

LC

0-70℃

10G

1470-1610nm

40KM

-1~-3

≤-15.8

LC

0-70℃

10G

1470-1610nm

80KM

0~-4

≤-23

LC

0-70℃

10G

C20-C60

40KM

-1-3

≤-15.8

LC

0-70℃

10G

C20-C60

80KM

0-4

≤-23

LC

0-70℃

Features
 1.10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER
 2.Uncooled CWDM DFB Laser:1270nm to 1450nm
 3.Up to 40km transmission.
 4.Metal enclosure,for lower EMI
 5.Electrical interface compliant to SFF-8431
 6.2-wire interface for management
 7.Specifications compliant with SFF-8472
 8.Single 3.3V power supply
 9.Case operating temperature range:-5°C to 70°C
 10.Class 1 Laser International Safety Standard IEC-60825

Applications
Gigabit Ethernet
Fiber Channel
WDM Application
Switch to Switch interface
Switch backplane applications
ATM
SONT/SDH/PDH
FDDI
Other optical transmission system
