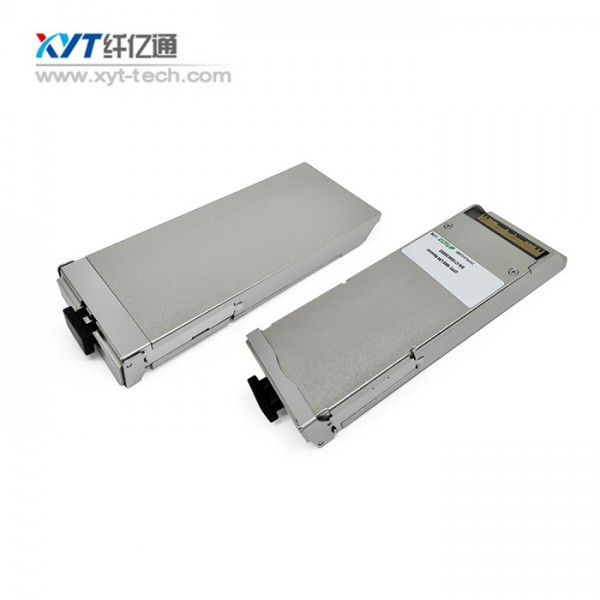

100Gb/s CFP2 SR10 850nm 100m Optical Transceiver
Quantity:

 - Specification -

Optical Characteristics (TOP = 0 to 70 °C, VCC = 3.13 to 3.47 V)

Parameter

Symbol

Min.

Typ

Max.

Unit

Note

Transmitter (per Lane)

Data Rate Per Lane

DRPL

10.3125

11.1810

Gb/s

1

Center wavelength

λ

840

850

860

nm

RMS Spectral Width

Δλ

0.65

nm

Average Power per Lane

PAVEp

-8

1

dBm

Transmit OMA per Lane

POMA

-6

3.0

dBm

2

Average launch Power of OFF

DP

-30

dB

Peak Power per Lane

PP

4.0

dBm

TDP per Lane

TDP

4

dBm

Extinction Ratio

ER

3.0

dB

Return Loss Tolerance

12

dB

Relative Intensity Noise

RIN

-128

dB/Hz

3

Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3}

0.23, 0.34, 0.43, 0.27, 0.35, 0.4

Receiver (per Lane)

Center wavelength

λ

840

850

860

nm

Receiver Sensitivity per Lane

PSEN1

-9.9

dBm

4

Receiver Sensitivity (OMA) per Lane

PSEN2

-5.4

dBm

Peak Power, per lane

PPx

4

dBm

Overload,perlane

PAVE

1

dBm

Receiver Reflectance

Rrx

-12

dB

Dispersion penalty , per lane

TDP

1.9

dB

Stressed eye J2 jitter, per Lane

JE2P

0.35

UI

Stressed eye J9 jitter, per Lane

JE9P

0.47

UI

Jitter tolerance [OMA], per lane

JTP

-5.4

dBm

LOS De-Assert

Pa

-11

dBm

LOS Assert

Pd

-25

dBm

LOS Hysteresis

Pd-Pa

0.5

dB

Notes:

1. Transmitter consists of 10 lasers operating at a maximum rate of 11.1810 Gb/s each.

2. Even if TDP is <0.9dB, the OMA min must exceed this value.

3. RIN is scaled by 10*log (10/4) to maintain SNR outside of transmitter.

4. Measured using DUT Tx and DUT Rx; no golden transmitters shall be used.

Ordering Information

Part Number

Description

XYT--100G_CFP2 SR10

CFP2 100G SR10 850nm100m 0~70℃

Product Features

●Supports 103.1Gb/s to 112Gb/s bit rates

●MPO 24 receptacle optical interface

●CPPI electrical interface

●Uncooled 10x10Gb/s 850nm transmitter

●10 parallel electrical serial interface

●Applicable for 100m with OM3 MMF and 150m with OM4 MMF

●Low power consumption <4W

●Digital Diagnostic Monitor Interfacel  ●MDIO Communication Interface

●Compliant with 100GBASE-SR10

●Operating case temperature:

Commerical:0 to 70 °C

Applications

●100GBASE-SR10 Ethernet

 ●10x11.2Gb/s Multimode OTN

 ●10x 10GE-SRLite Ethernet

Standards

●Compliant with IEEE 802.3ba

●Compliant with CFP2 MSA hardware specifications

●Compliant with CFP2 MSA management specifications
