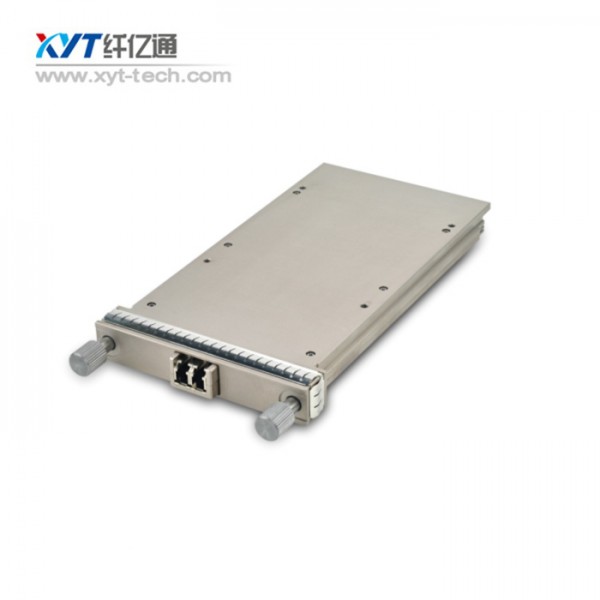

100Gb/s CFP ZR10 80km

Model NO.: XYT--100G_CFP ZR10

Quantity:

Product Description
Application Description

- Specification -

Optical Characteristics (Top=0~70℃, Vcc=3.2~3.4V)

(Tested under recommended operating conditions,unless otherwise noted)

Parameter	Symbol	Unit	Min		Typ			Max			Notes
Transmitter
Signaling rate, each lane		GBd	10.3125
Lane Wavelength Range	λ1	nm		DWDM					1
Total launch power	Pout	dBm				+11.7
Average launch power, each lane	Pavg	dBm	-3			+2
Difference in launch power between any two lanes (OMA)		dB				5
Extinction ratio	ER	dB	8
Side-mode suppression ratio	SMSR	dB	30
Optical return loss tolerance		dB				20
Transmitter reflectance3		dB				–12
Transmitter eye mask {X1, X2, X3, Y1, Y2, Y3}			IEEE 802.3 Clause 100Gbase
Optical Receiver Characteristics
Receive Rate for Each Lane		Gbps		10.3125
Overload Input Optical Power	Pmax	dBm	5.5
Average Receive Power for Each Lane	Pin	dBm	-22				0
Receiver Sensitivity(OMA)per lane	Psens1	dBm					-22			2
Return Loss	RL	dB	-26
Receiver Electrical 3dB upper cutoff frequency, per lane		GHz					31
Los De-Assert	Pd	dBm	-40				-22
Los Assert	Pa	dBm	-40				-22
Loss Hysteresis	Pd-Pa	dBm		2.5

Notes:

1. Lane Wavelength Range

Ordering Information

Part Number	Description
XYT--100G_CFP ZR10	100G CFP ZR10 80Km 0~70℃

Functional Description
Sharetop’s 100G_CFP ZR10, 100G CFP ZR10 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, 10 lanes of serial data streams are recovered, retimed,and passed on to 10 laser drivers, which control ten electric-absorption modulated lasers (EMLs) with C band wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, 10 lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a APD photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.
Product Features
●Supports 103.1Gbps to 112Gbps bit rates
●Duplex LC connector
●Hot pluggable
●10x10Gb/s DWDM transmitter and pin receiver
●10x10G MLD electrical interface
●Applicable for 80km SMF connection
●Low power consumption, < 18W
●Digital Diagnostic Monitor Interfacel
●MDIO Communication Interface
●Operating case temperature:
Commerical:0 to 70 °C

Applications
●100GBASE-ZR10 100G Ethernet
●Other Optical link
