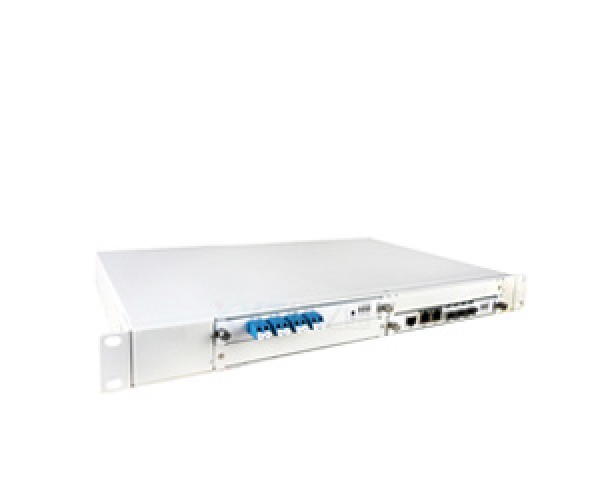

OBP Optical bypass protection

Wavelength range

1270 to 1610 nm

Insertion loss

≤1.2dB

Polarization dependent loss

＜0.2dB

Wavelength dependent loss

＜0.3dB

Switching time

＜5ms

Switch cross talk

＞55   dB

Return loss

＞45   dB

Fiber type

Corning SMF-28,

Connectors

LC/PC

Switch type

Non-latching

Operating current

80 ~ 120mA

Operating voltage

4.5 ~ 5.5V

Operating Temperature

-5 ~ 60 °C

Storage Temperature

-30 ~ 80 °C

Package Dimension

Item

Name

 Model

Specification

1

OBP(1+1)

OBP-S-1-1

1+1 mode OBP, single mode LC/PC   interface

2

OBP(1:1)

OBP-S-3-1

1:1 mode OBP, with the preparation of fiber detection, single   mode LC/PC interface
