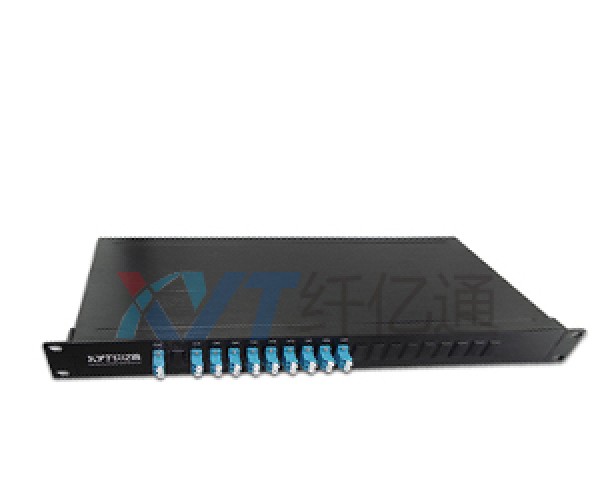

8ch CWDM/OADM mux demux

Parameter

8 Channel

Mux

Demux

Channel Wavelength(nm)

1270~1610

Center wavelength Accuracy(nm)

±0.5

Channel Spacing(nm)

20

Channel Passband(@-0.5dB bandwidth(nm)

>13

Insertion Loss(dB)

≤2.5

Channel Uniformity(dB)

≤1.0

Channel Ripple(dB)

0.3

Isolation(dB)

Adjacent

N/A

>30

Non-adjacent

N/A

>40

Inertion Loss Temperature Sensitivity(dB/℃)

<0.005

Wavelength Temperature Shifting(nm/℃)

<0.002

Polarization Dependent Loss(dB)

<0.1

Polarization Mode Dispersion(PS)

<0.1

Directivity(dB)

>50

Return Loss（dB）

>45

Maximum Power Handling(mW)

300

Opterating Temperature(℃)

-5~+75

Storage Temperature(℃)

-40~85

Package dimension(mm)

1.L100 x W80 x H10(2 CH～8CH)

2.L140xW100xH15(9 CH～18CH))

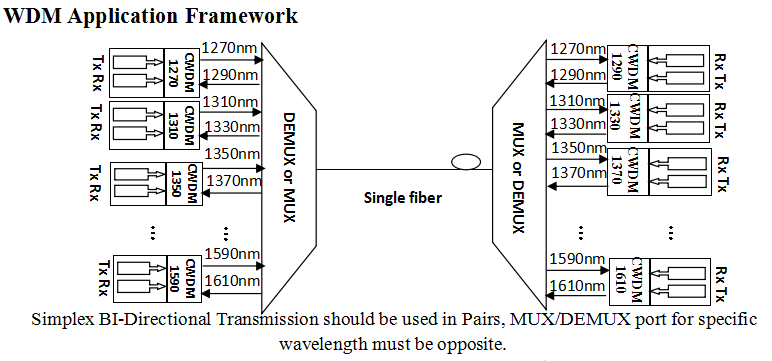

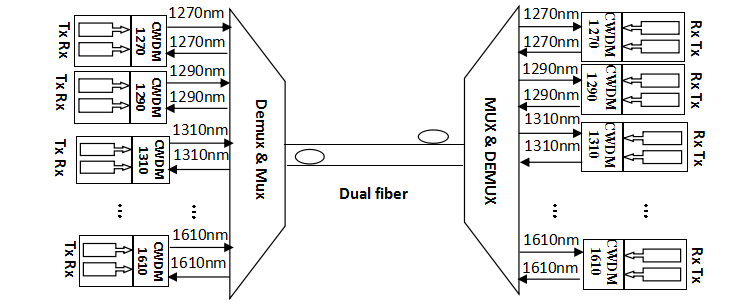

Ordering information(CWDM-B-04-27-1-1-0)

Configuration

Number of Channels

1st

Channel

Fiber Type

Fiber Length

In/Out Connector

B=BIDI(single fiber)

D=Dual fiber

04=4 Channel

08=8 Channel

16=16 Channel

18=18 Channel
N=N Channel

……

27=1270nm
47=1470nm
49=1490nm

……
61=1610nm
SS=special

1=Bare fiber
2=900um
Loose tube
3=2mm Cable
4=3mm Cable

1=1m
2=1.5m
S=Specify

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC

……
