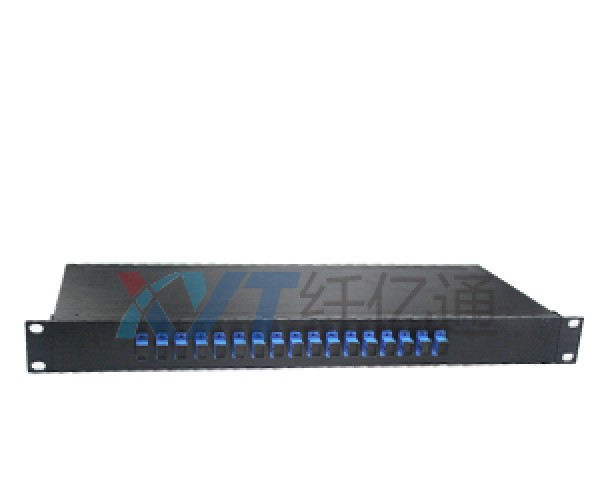

18ch CWDM/OADM mux demux

Demux

Channel Wavelength(nm)

1270~1610

Center wavelength Accuracy(nm)

±0.5

Channel Spacing(nm)

20

Channel Passband(@-0.5dB bandwidth(nm)

>13

Insertion Loss(dB)

Channel Uniformity(dB)

≤1.0

Channel Ripple(dB)

0.3

Isolation(dB)

Adjacent

N/A

Non-adjacent

N/A

>40

Inertion Loss Temperature Sensitivity(dB/℃)

<0.005

Wavelength Temperature Shifting(nm/℃)

<0.002

Polarization Dependent Loss(dB)

<0.1

Polarization Mode Dispersion(PS)

<0.1

Directivity(dB)

>50

Return Loss（dB）

>45

Maximum Power Handling(mW)

300

Opterating Temperature(℃)

-5~+75

Storage Temperature(℃)

-40~85

Package dimension(mm)

1.L100 x W80 x H10(2 CH～8CH)

2.L140xW100xH15(9 CH～18CH))
