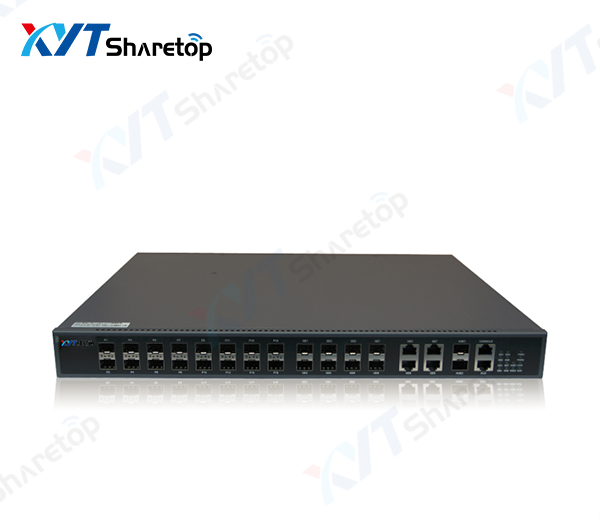

16 PON 4 RJ45 EPON-OLT

Model NO.: XYT-16PON-4RJ45-EPON-OLT

Quantity:

Product Description

size of product:

Attribute		16PortEPON-OLT
System capacity		Maximum 1:64 optical ratio
		Backplane bandwidth is 128G
		MAC table capacity: 32K
PON port	PON	16 EPON interfaces
	The upper mouth	8 GE interfaces (4 gigabit ports, 4 gigabit photoelectric multiplexing ports)
	The upper mouth	Scalable 2 trillion abit interface
PON interface features		Upper and downstream symmetric 1Gbps transmission rate PON port average luminescence power: + 2dbm ~ + 7dbm
		Receiving optical sensitivity of PON port: not less than-30dBm
		Security: The ONU authentication mechanism
Standards to follow		IEEE802.3ah
		IEEE 802.1D, Spanning Tree
		IEEE 802.1Q, VLAN
		IEEE 802.1w, RSTP
		IEEE 802.3ad Physical Link Static/Dynamic Aggregation (LACP)
		Ethernet– II
Service quality parameter		Back-pressure flow control (semi-duplex)
		IEEE 802.3x flow control (full-duplex)
		IEEE 802.1p, CoS
		WRR,SP and FIFO queue scheduling algorithm
		Based on the up and downside speed limit functions for each ONU
		Support for DBA and SLA functions
VLAN		Port-based VLAN
VLAN		QinQ, and supports flexible QinQ
Three layers of function		Supports static routing, Ripv1/v2, OSPF, etc;
Three layers of function		Host routing capacity: 8K
Group broadcast		IGMP
Group broadcast		IGMP Snooping
Reliability		Single-direction link detection protocol to prevent the survival tree loop
		Expansion slot EPON optical module hot plug out
		EPON optical road protection
Network security		Limit the maximum number of users per port
		Port isolation
		News storm control
		The control function of ACL access based on data flow
		The PON port transmits data encryption
Configuration management		Various management methods, such as CLI,SNMP,TELNET.
		Software upgrades are available through the TFTP
		The Chinese and English command prompt
		Debug the output debug
physical characteristics		442.5mm(W) x300mm(D) x 44mm(H)
		Installation: Standard 19"rack
		weight:2Kg
Environmental requirements		Working environment: -40℃~70℃; 0%~85% without condensation
Environmental requirements		Storage environment: -40℃~80℃; 5%~95% condensation-free
Power supply		Input voltage: AC90~264V,DC-36 ~ -72V
		Support dual power input, AC and DC power hybrid plug, and power module hot plug plug
		Support for over-flow pressure protection
